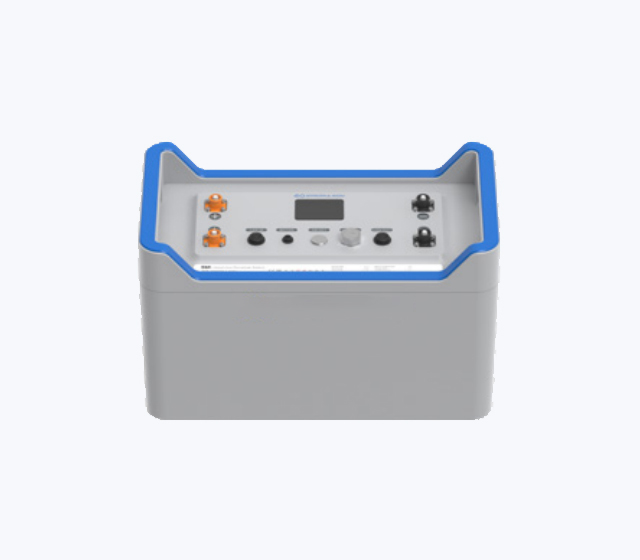

Battery
Basic |
|
Chemistry |
Lthium Iron Phosphate (LiFePO4) |
Rated Voltage |
51.2V |
Capacity |
3072 Wh/ 60Ah |
Battery Life |
3,000 cycles at 80% DOD |
Physical |
|
Weight |
32 kg |
Dimensions |
512×290x300mm 202x11.4x11.8in |
Electrical |
|
Cut-off Voltage |
41.6V |
Final Charging Voltage |
57.6V |
Max Continuous Discharging Current |
70A |
Serial Connection |
N/A |
Parallel Connection |
Up to 16 |
Cell Configuration |
16S4P |
Charger |
New E-Series battery charger |
Charging Time(220V) |
One charger.2.7 Hrs Two chargers in parallel 1.3 Hrs |
Charging Time(110V) |
One charger.4 Hrs Two chargers in parallel 2 Hrs |
Features |
|
Communication |
Available: CAN-Bus for Parallel RS485 for ePropulsion motors |
Shipping Classification |
UN3480,Class 9,UN38.3 Certified |
Approvals |
CE, FCC |
